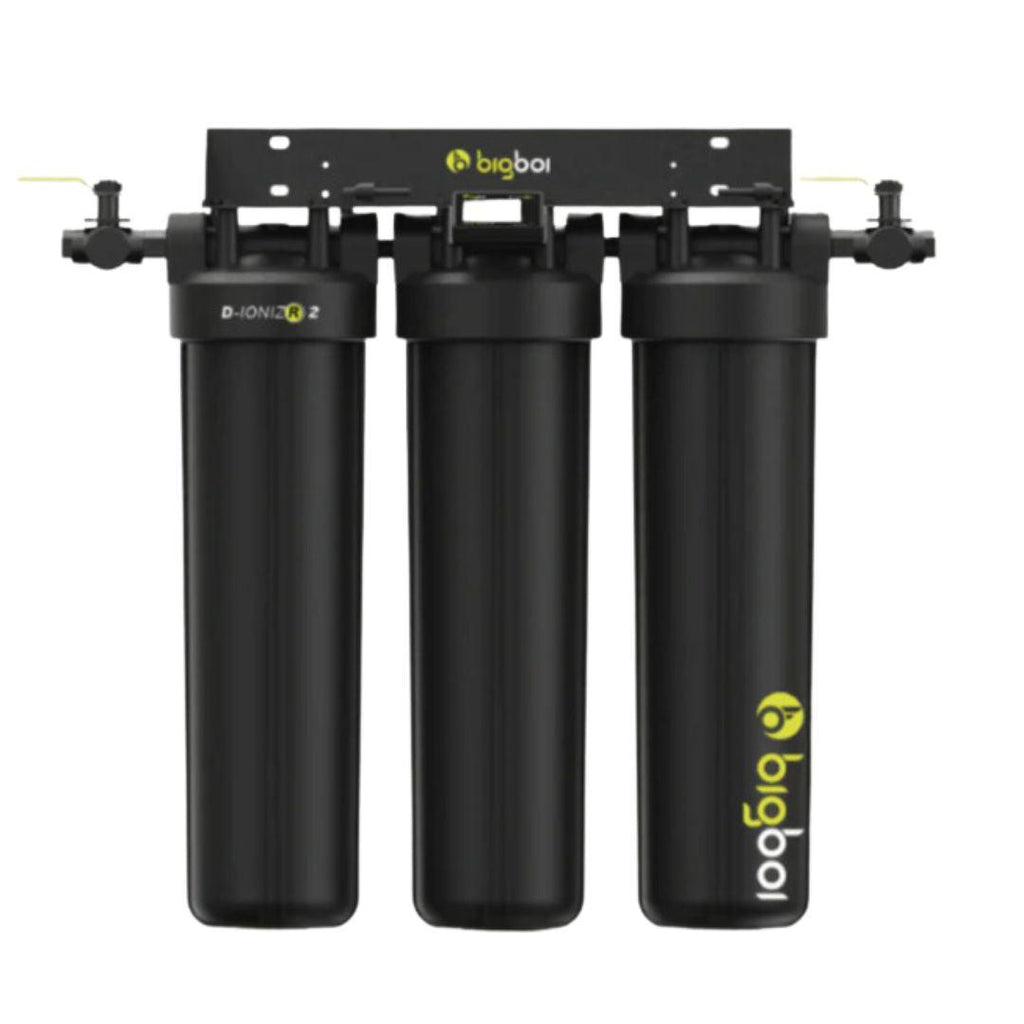

BIGBOI D-IONIZR2 Water Filtration System

3 STAGE FILTER SET UP

 The D-IONIZR2 has a 3-stage filter set up. The first filter is a composite carbon filter

which is designed to remove the hardness levels of your water. This also adds an
extreme benefit to the D-IONIZR filter as the water flowing through it will be much
cleaner and prolong the life span of your cartridges. We have seen a 20% increase of your DI cartridge with this set up.

The 2nd & 3rd filters are deionized resin that will filter the water to 0PPM (parts per million). With a built-in digital TDS metre that will read the incoming and outgoing levels
give the user all the information needed. The newly developed bypass valve allows the user to simply choose if they want to use the filter system for the complete wash cycle or just during the final rinse cycle to prolong the cartridge's life span. Bigboi has seen benefits to using the system during a complete wash cycle by seeing better foaming in the snow foam and wash process with deionized water. This is not necessary but can be adopted if desired.

PERFORMANCE:

1 standard de-ionize cartridge will approximately filter 1200 litres on its own.
This is based on your water hardness level to be 100TDS or lower. When working in line with our carbon filter it will achieve 20% (1440 litres) more efficiency subject to your
water levels. Based on using the system just during a rinse cycle you will be able to use it
between 160-192 washes.

PACK INCLUDES:

Box 1:

• Top mount tank housing
• Built-in bypass system

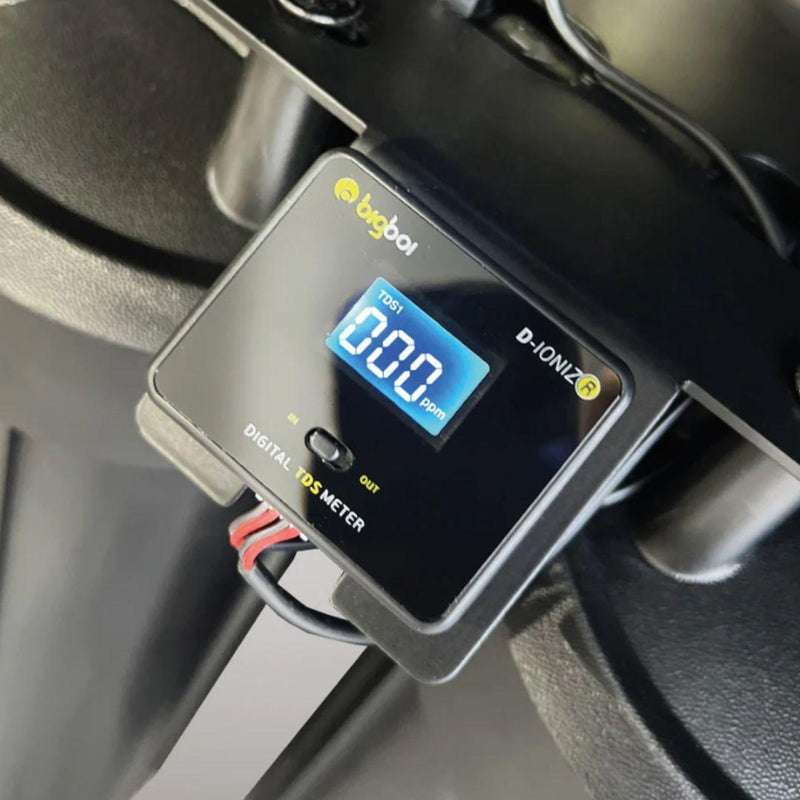

• Built-in TDS Digital reader ( In -Out reading)

Box 2:

• 3 x black filter tanks

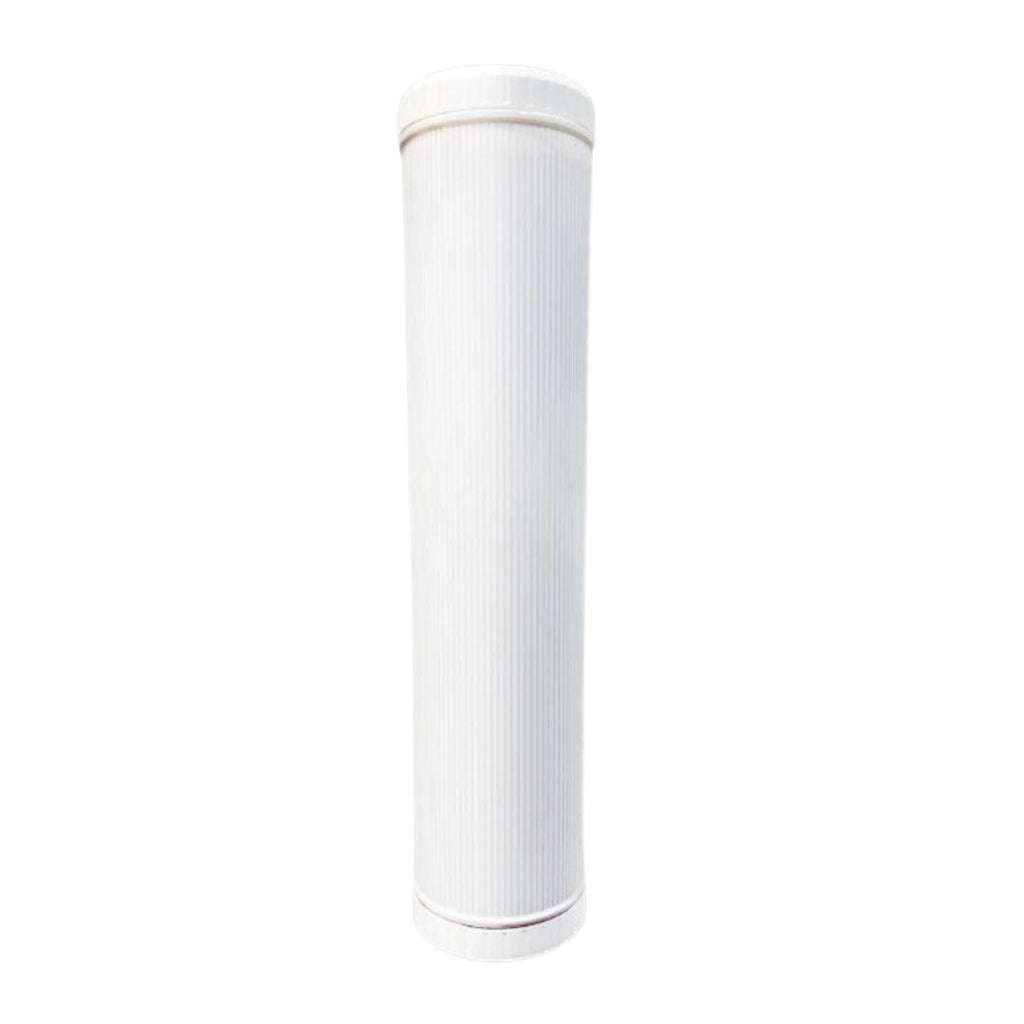

• 1 x 20inch Composite carbon filter

• 2 x 20inch Deionized filter

PLEASE NOTE: Parts included to complete set up- Tank wrench for tank installation, tread tape, water in-out fitting, spare tank O-Rings, O-Ring lubrication & valve oil. Bigboi front tank sticker!!
